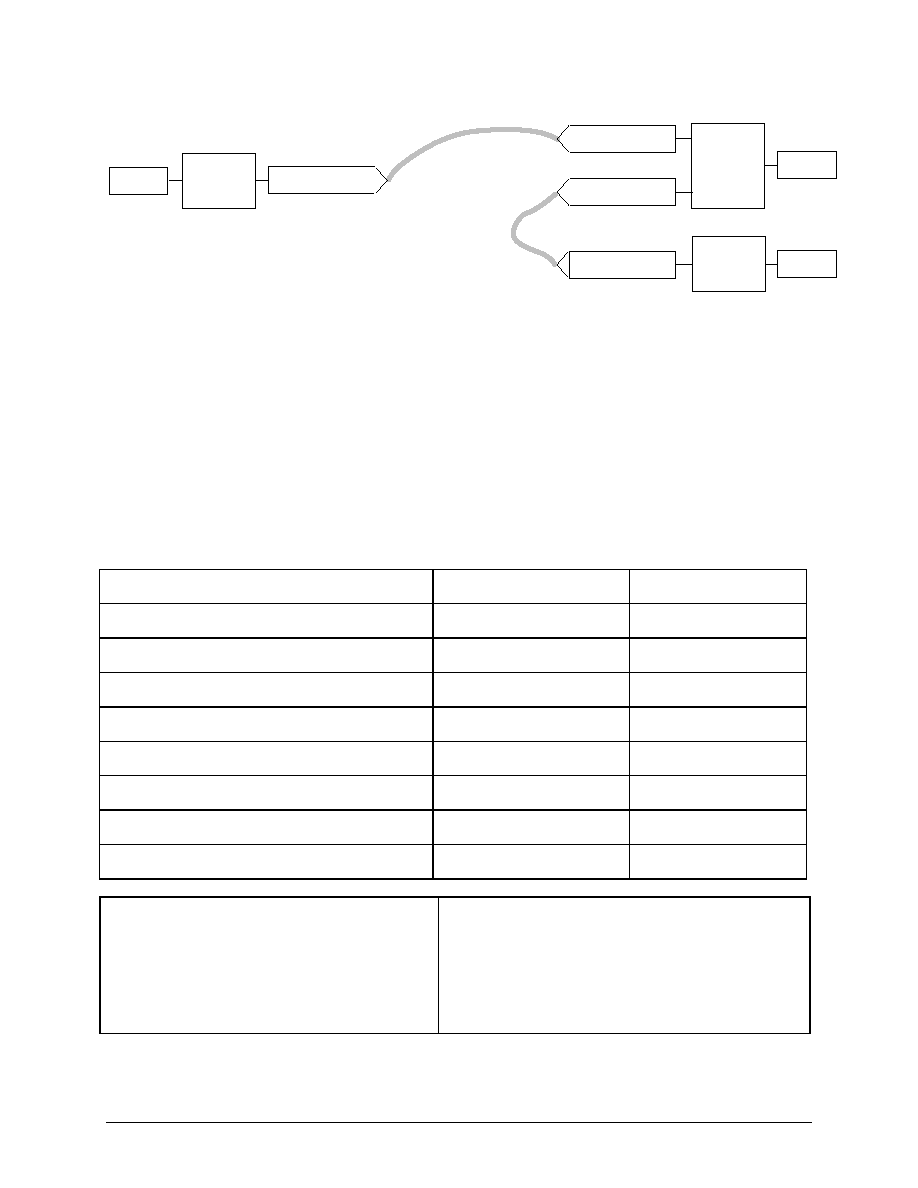

Figure 2.1-3 Encryptor Usage in Line Encryption Mode
SITE 2
SITE 1
ENCRYPTOR
ENCRYPTOR
OC48
SITE 2
ENCRYPTOR
OC48
OC48
SWITCH
/ ADM *
SWITCH
/ ADM *
SWITCH
/ ADM *
* ADM = Add/Drop Multiplexer
OC48
ENCRYPTOR
Figure 2.1-3 shows an example using encryptors in line encryption mode.
2.2
Module Description
The SafeNet Encryptor is a multiple-chip standalone cryptographic module consisting of production-grade
components contained in a physically protected enclosure in accordance with FIPS 140-2 Level 3. The
module outer casing defines the cryptographic boundary. The steel case completely encloses the
encryptor to protect it from tampering. Any attempt to remove the cover will automatically erase all
sensitive information stored internally in the encryptor.
Table 2.2-1 Supported Models
155/622 MB (OC-3/12)
2 km (904-10001-00x)
904-30013-00x (RoHS)
155/622 MB (OC-3/12)
15 km (904-10002-00x)
904-10014-00x (RoHS)
155/622 MB (OC-3/12)
40 km (904-10003-00x)
904-10014-00x (RoHS)
1.0 GB
10km (904-10112-00x)
904-10113-00x (RoHS)
2.4 GB (OC-48)
2 km (904-20001-00x)
904-25005-00x (RoHS)
2.4 GB (OC-48)
15 km (904-20002-00x)
904-25005-00x (RoHS)
2.4 GB (OC-48)
40 km (904-20003-00x)
904-25005-00x (RoHS)
SafeNet SONET Encryptor (SSE)
904-511i0-00x
N/A
SafeNet Ethernet Encryptor (SEE)
943-511i0-00x
N/A
The'x' in the model numbers represents the
power cord variants.
Power cords are accessory kit items that are
separate from the physical systems.
1 US power cord
2 UK power cord
4 European power cord
5 Swiss power cord
7 -48V DC power
