Non-Proprietary Security Policy, Brocade VDX 6710, VDX 6720, VDX 6730, VDX 6740, VDX 6740T and VDX 8770 Switches
V1.0
Brocade Communications Systems, Inc.
Page 9 of 50
Component of the cryptographic boundary
SKU/MGF Part Number
Field Replaceable Unit Fan Module
SKU XBR-FAN-FRU
P/N 80-1006080-01
Field Replaceable Unit Switch Fabric Module
SKU BR-VDX8770-SFM-1
P/N 80-1006295-01
Field Replaceable Unit Management Module
SKU BR-VDX8770-MM-1
P/N 80-1006294-02
Field Replaceable Unit Line Card Unit
48X1G Line Card
SKU BR-VDX8770-48X1G-SFP-1
P/N 80-1006049-02
12X40GE Line Card
SKU BR-VDX8770-12X40G-QSFP-1
P/N 80-1006293-02
48X10G Line Card
SKU BR-VDX8770-48X10G-SFPP-1
P/N 80-1006048-02
Field Replaceable Unit Filler Panel for Line Card Slot
SKU XBR-BLNK-FULL
P/N 80-1006431-01
Field Replaceable Unit Half-Slot Filler Panel for Switch Fabric Module
Slot or Management Module Slot
SKU XBR-BLNK-HALF
P/N 80-1006429-01
Figure 1 through Figure 8 illustrate the cryptographic module configurations. With the exception of VDX 8770-
4 and VDX 8770-8 shown below, power supplies and fan assemblies are not within cryptographic boundary.

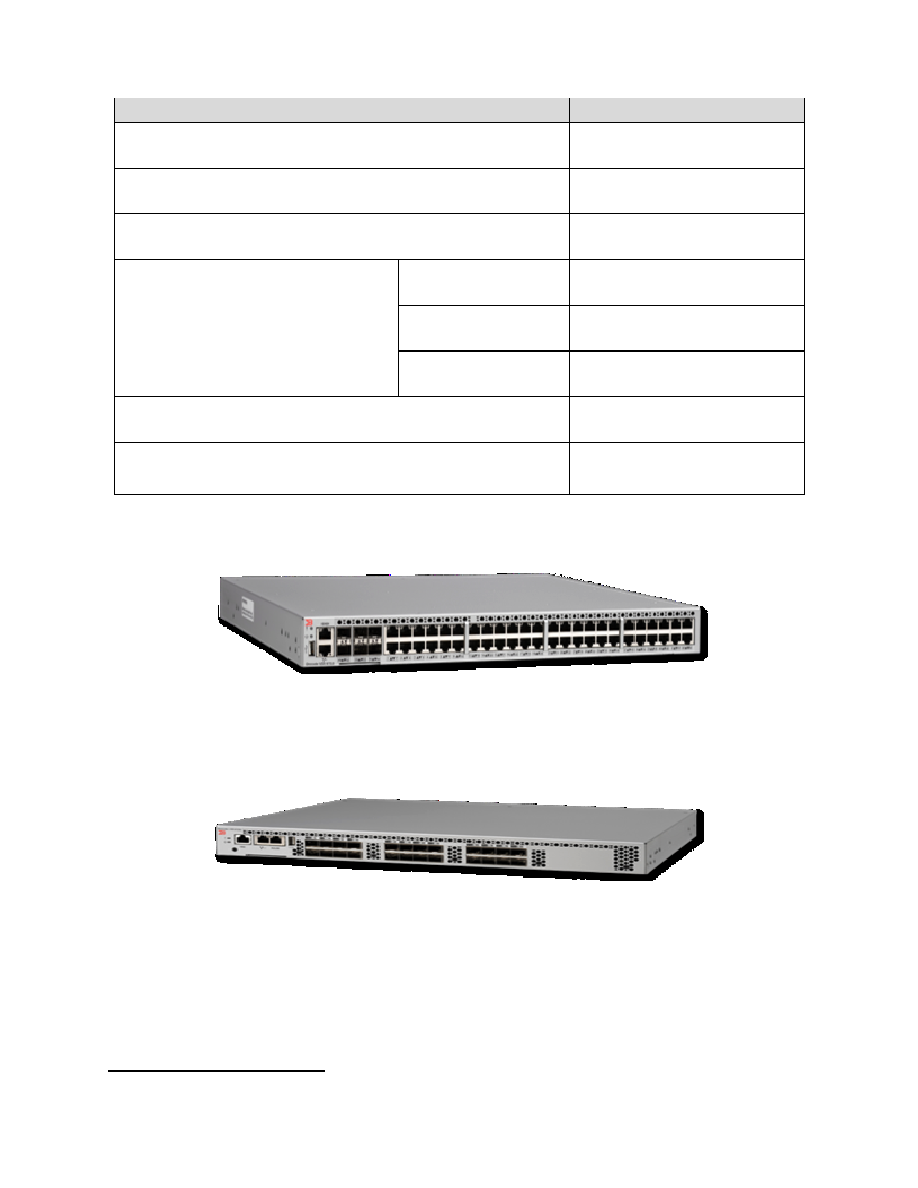

Figure 1 VDX 6710-54 Switch
Table 2 lists the validated configurations for the VDX 6710-54.
Figure 2 VDX 6720-16 and VDX 6720-24
Table 3 lists the validated configurations for the VDX 6720-16 and VDX 6720-241.
1
SW-VDX-6720-24POD-01 license enables additional ports
